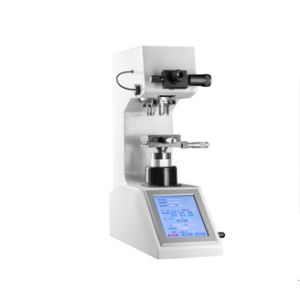

HV-30MDX Advanced Touch Screen Interface Vickers Hardness Tester
Product characteristics:
1. Eight level load from 0.5Kgf(9.8N)to 30.0Kgf(490N) , customized
2. Electric load ,closed-loop control,automatic loading
3. Load automatic corrected,Accuracy raise a number of levels
4. Hardness value automatic corrected according to different hardness block
5. No need to install the weight, no need to regulate
6. Touch screen interface,any language version
7. Modular design, simple maintenance
8. Large sample space
9. Save more samples and test information
10. Set the password protection
11. Data saved as EXCEL format through USB flash disk, edit and process easy
12. Available to upgrade to full automatic Vickers hardness tester
Technical Specifications:
| Model | HV-30MDX |
| Test force | 0.5Kgf (4.90N),1.0 Kgf (9.8N),2.0Kgf(19.6N),2.5Kgf(24.5N),3.0Kgf(29.4N),5.0Kgf(49.0N),10.0Kgf(98.0N),15.0Kgf(147N),20.0Kgf(196N),30.0Kgf(294N),0.3 Kgf(Optional) |
| Carried standard | GB/T4340,ASTM E92 |
| Test resolution | 0.01un |
| Conversion scale | Rockwell,Brinell |
| Hardness measuring range | 8~2900HV |
| Test force loading method | Automatic(loading,duration,unloading) |
| Test microscope magnification | 100X,200X(Both objectives can test) |
| Test force dwell time | 1~99s |
| Data output | 8’touch screen ,20 different kinds of test result can be saved |
| Maximum specimen height | 160mm |
| Distance from the center to the outer wall of the indenter | 135mm |
| Size | 600*220*700mm |
| Weight | About 50Kg |
| Power | AC220V+5%,50-60Hz |
Standard accessories
| No | Description of Goods | Quantity |
| 1 | Large ,medium-sized, V sharped test table | Each 1PC |
| 2 | Regulating Screw | 4 PCS |
| 3 | 10× Micro Eyepiece | 1 PC |
| 4 | Vickers standard block | 2 PCS |
| 5 | Spare Fuses (2A) | 2 PCS |
| 6 | Touch pen,U disk | Each 1PC |
| 7 | Level | 1 PC |
| 8 | Dust bag | 1 PC |
| 9 | Power Cord | 1 PC |
| 10 | The Product Quality Certificate | 1 PC |
| 11 | The Manual | 1 PC |
